Spray Foam Insulation Equipment

Spray Foam Insulation Gun
SP 2

Spray Foam Insulation Gun

Double component air purged spray foaming guns for all kinds and brands of spray machines

Polyurethane Spray Gun
SP

Polyurethane Spray Gun

Spray Gun For Polyurea And Spray Foam

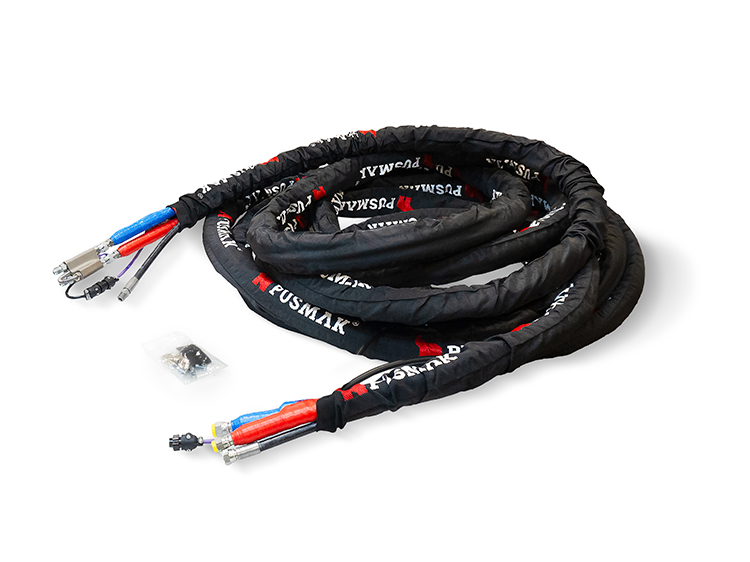

PH15 Heated Hose

PH15 Heated Hose

PH63 Heated Hose

PH63 Heated Hose

Heatable hose for polyurethane foam spray machines and polyurea machines.

TP Transfer Pump

TP Transfer Pump

Pneumatic chemical transfer pumps for both barrels and ibc tanks. Can also be used for all kind of chemical transfer purposes

PM1 Poliol Mixer

PM1 Poliol Mixer

Mixer for Chemicals Like Poliol etc.

EPT Polyurethane Saw

EPT Polyurethane Saw

ETM Electronic Spray Foam Shaving Machine

ETM Electrical Spray Foam Shaving Machine

ETM Electrical Spray Foam Shaving Machine

Electrical Spray Foam Smoothing and Shaving Machine

PTM Pneumatic Spray Foam Shaving Machine

PTM Pneumatic Spray Foam Shaving Machine

Pneumatic Spray Foam Smoothing And Shaving Machine

Uc Ulstasonic Cleaning Machine

Uc Ulstasonic Cleaning Machine

Ultrasonic Cleaning Machine For Spray Gun, Transfer Pumps And Machine Part

Barrel Moisture Barrier Kit

Barrel Moisture Barrier Kit

Moisture barrier kit for isocyneate and poliol.

Spray Foam Insulation Equipment solutions for the needs of spray foam and polyurea sectors.

Polyurethane Spray Gun

The Polyurethane Spray Gun is one of the most crucial components of the machine set in spray polyurethane foam and polyurea applications. After being processed in the polyurethane spray machine, the two-component polyurethane raw ingredients (isocyanate and polyol) are delivered to the machine by transfer pumps and then reach the gun with the aid of a heated hose. The specially constructed mixing chamber of the spray gun mixes and dispenses the raw material that enters it without first mingling with one another. In other words, inside the polyurethane spray machine system, the polyurethane spray gun serves as the location where the combination is created.

Raw ingredients for polyurea and polyurethane interact quite quickly. Even a very little quantity of raw material particles will interact and harden in the spray gun's tiny chambers in a matter of seconds. Spray guns for polyurethane and polyurea/polyurea require constant airflow to avoid clogging since the solidifying raw materials in the spray gun can lead to downtime. In other words, in addition to the two raw material components, an air connection is made to the gun. When the trigger is depressed, the gun cuts the air and activates the mixture. When the trigger is released, the mixing chamber is immediately cleaned with air, preventing the raw materials from interacting.

Due to the nature mentioned above, polyurethane spray guns need cleaning at the end of every job. Chemicals called Dimethylformamide or DMF (CH3)2NC(O)H are generally used to easily clean the solidifications formed by isocyanate, which is a strong adhesive. In order to make the cleaning work easier, support can also be obtained from the Pusmak UC Ultrasonic non-destroying device. The cleaning of the gun is of vital importance in polyurethane spray foam and polyurea applications, as it will directly affect the performance of the machine and the quality of the product to be produced.

There are two types of polyurethane spray guns, SP and SP2, in Pusmak inventory. Both spray guns are designed for the needs of industry professionals. SP2 Spray Gun stands out in the sector with its adjustable spray feature. Both SP and SP2 model spray guns can work in harmony with the machines of all global brands.

Polyurethane Heated Hose

Heat is vital for the most efficient reaction of polyurethane and polyurea raw materials. Even though they are mixed at room temperature under normal conditions, the most efficient reaction of the two interacting components (isocyanate and polyol) is achieved when they are mixed under the most ideal temperature. The most basic need for spray polyurethane foam and polyurea machine systems is to mix the product by bringing it to the desired temperature. Specially designed heated and insulated hoses are needed so that the raw materials heated to the temperature in the recipe in the machine preheaters do not lose heat until they reach the spray gun where the mixture is made.

Pusmak responds to this need with its PH63 Heated Hose. The PH63 Heated hose consists of 63 meters of one-piece hose and whip. With its ideal length, it creates a great advantage for practitioners. Pusmak's own special design, 63 meters of heated one-piece hose, has been produced to fully meet the needs of professionals who apply both spray polyurea and polyurethane foam.

Polyurethane Raw Material Transfer Pump

Raw materials for polyurethane must be shielded from outside influences in order to maintain their quality and shelf life. Since even the air's humidity has an impact on the products, as little air contact as possible should be made with them. This demand led to the creation of a closed system using polyurethane spray and polyurea equipment. The Polyurethane transfer pumps are the point where the closed circuit system is connected to the raw material. Each component has its own pump, which is often pneumatic. With the help of the compressor, which is a component of the machine set, polyurethane transfer pumps work to transport the raw material to the machine.

Polyurethane Shaver

Spray Polyurethane Foam does not form smoothly on the surface it is applied due to its application form and nature. The dexterity of the practitioner, the shape of the floor, etc. Surpluses may occur in the foam formed due to the effects. Especially in applications where the applied foam will be covered again, there is a need for shaving the polyurethane foam. Closing the under-roof applications as inverted ceilings, under-screed applications on the floor, etc. can be shown as a few different application examples to the floors that need to be trimmed.

Pusmak offers two types of products, PTM and ETM, to industry employees who need polyurethane trimming. Although there is not much difference between PTM with Pneumatic motor and ETM with electric motor in terms of performance and application, suggestions are made according to the wishes of the users.

Polyurethane Saw

EPT Pusmak Similar to polyurethane shaver, polyurethane saws were developed to address a demand for cutting coarser excesses on the application floor.

Polyurethane Barrel Mixer

For two component Polyol in polyurethane foam applications, a polyurethane drum mixer is employed. Due to its chemical makeup and requirements, polyol is not homogeneous. Its constituent parts disintegrate after a period of waiting for the gases and liquids inside. To improve the quality of the final product and machine performance, polyol liquid must be blended before use.

Pusmak provides the PM1 Barrel Mixer in response to this demand from professionals. The PM1 is a useful remedy thanks to its strong pneumatic motor.

How much does spray foam insulation equipment cost?

There are many parameters about calculating the cost for a spray foam insulation machine. Although mostly quoted for bare machine, that makes no sense without necessary accessories like spray gun, heated hose, transfer pumps. The length of heated hose is also another parameter to define the price. For a professional machine system you will need to invest around 13-15 k $ roughly.

Where to buy spray foam insulation equipment.

 There are many options for where to buy spray foam insulation equipment. A brief search on the net will tell you all the options around you. But more than searching where to buy spray foam insulation equipment, we would suggest o make a search about the best aftersales service for spray foam insulation machinery and equipment.  Let it be online or face to face Pusmak promises to supply best service for any of its customers.

What kind of equipment is needed for spray foam insulation ?

 Spray foam insulation equipment are a set of some parts. First is the machine for heating and getting the chemical to necessary pressure, second is  the transfer pumps for iso and poliol from barrels/ibc tanks to machine body, third one is the heated hose to transfer the already heated material without cooling down till spray gun,  fourth is the plural component PU Spray gun where the mixing is done. As a supplementary equipment an air compressor and electricity source is needed for the system
