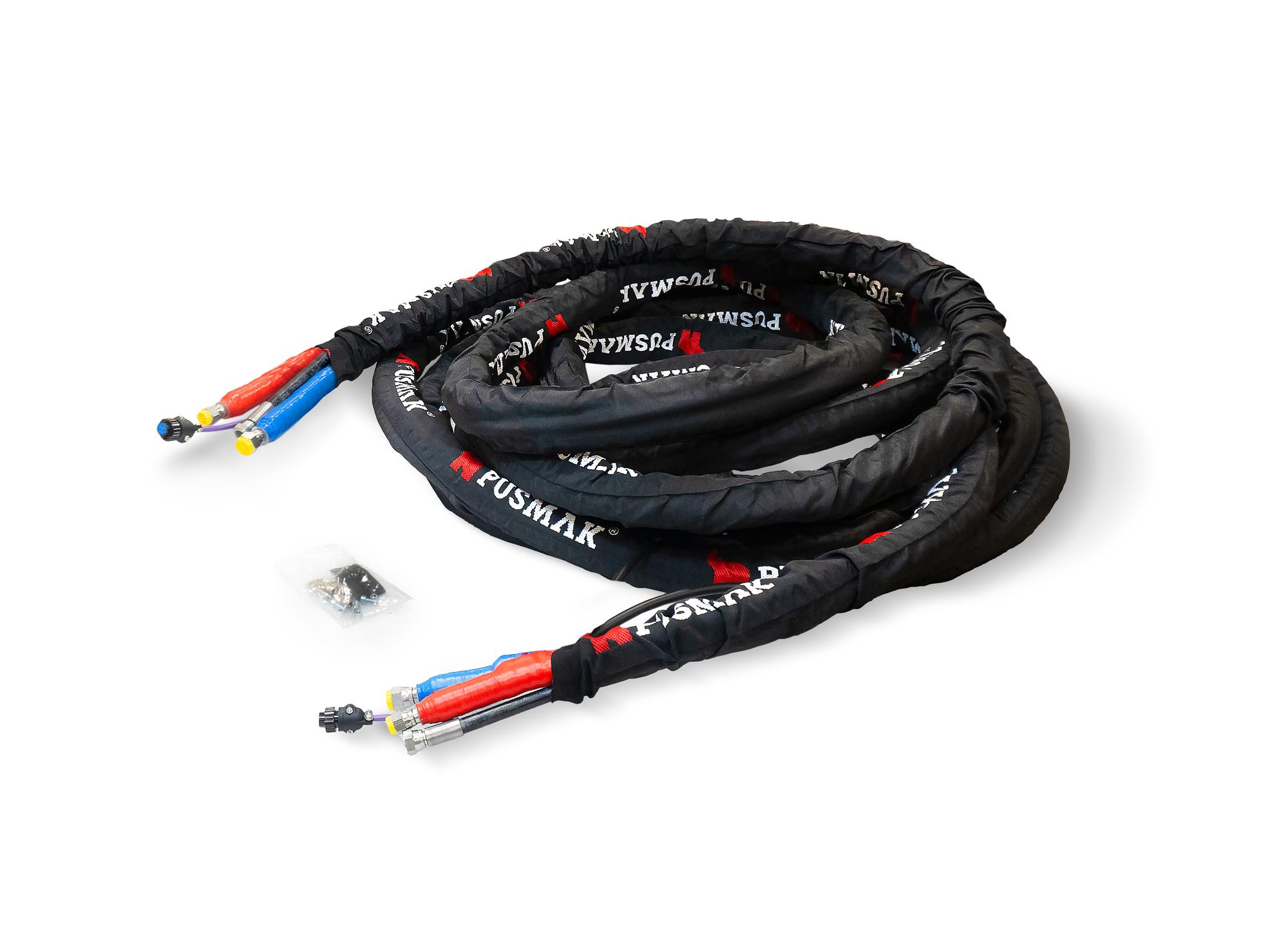

PH15 Heated Hose

  1. Home
  2. Spray Foam Insulation Equipment
  3. PH15 Heated Hose

PH 15 is a universal type of heated hose. It is an addable
one. According to the machine to be fixed the length
of hose can be up to 120 mt. This type of hoses are suggested
when customers need extra long hoses.

The hose maintains the ideal temperature using a special insulation material.
Its durable structure allows easy movement within the application area.
The heating system transfers the raw material from the machine to the spray gun at the required temperature.

Manufactured with compatibility for all machine brands.

Key Features

  • Length: 50 ft / 15 m
  • Inner Diameter: 3/8"
  • Temperature Sensor: E-type thermocouple
  • Max. Operating Temperature: 90 °C (194 °F)
  • Max. Operating Pressure: 240 Bar (3500 PSI)
  • Required Heating Power: 400 W

Technical Specifications

Length 50 ft / 15 m
Sensor Type E-type thermocouple
Inner Diameter 3/8"
Maximum Temperature 90 °C
Maximum Pressure 240 Bar
Heating Power 400 W

Connection Ends

Machine End

  • ISO: 1/2 UNF (female)
  • POL: 9/16 UNF (female)
  • Air: 1/4 BSP (female)

Sensor End

  • ISO: 1/2 UNF (male)
  • POL: 9/16 UNF (male)
  • Air: 1/4 NPT (male)
