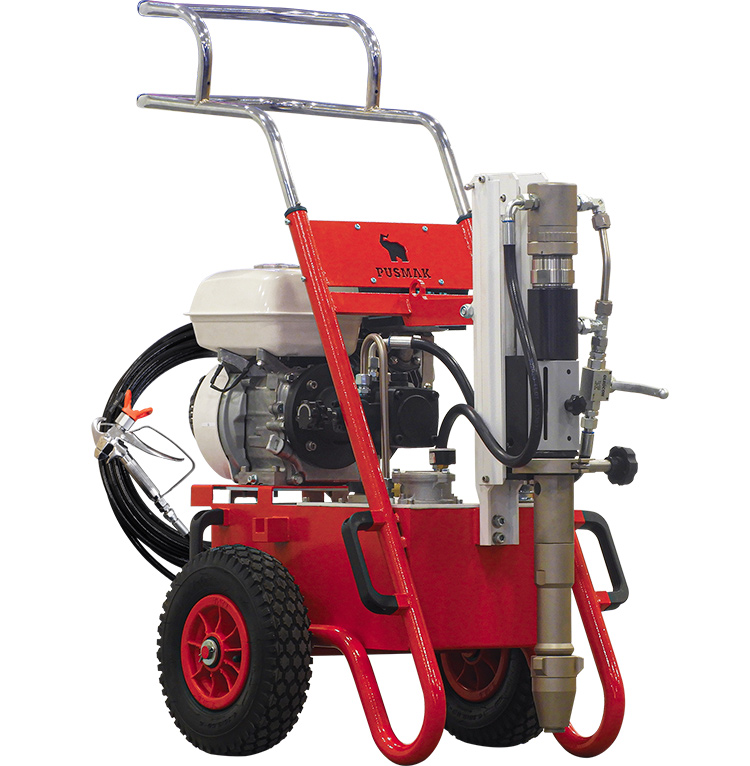

Hydraulic Airless for paint , satin plaster and one compenant polyurethane elastomers New HP5 airless with gasoline engine is designed and engineered for for single component polyurethane coating materials, paints and satin plasters. Pressure capacity up to 250 bar enables user to spray various materials at desired volume. It is equipped with a 15 mt length hose and spray gun. The gasoline engine allows worker to work in all work sites. It can also be adapted easily to all kinds of other painting uses.
|
Metric |
Imperial |
Weight |
103 kg |
228.2 lbs |
Hose Diameter |
8mm |
5/16in |
Fuel Capacity |
3,1lt |
0,8gal |
Power Source |
Gasoline/Benzinli |
|
Maximum Hose Length |
30 m |
98,42 ft |
Flow Average |
4,3lt/min |
1,13gal/min |
Maximum Working Pressure |
250bar |
3625psi |
Height |
100cm |
40in |
Width |
60cm |
24in |
Lenght |
90cm |
36in |
Pusmak’s hydraulically driven genset and compressor integrated spray proportioning machine is engineered and manufactured to fulfill the needs of polyurea coating specialist and spray foam experts. Spray machine is built on a power generator and an air compressor is also integrated to the system. This compact set enables spray constructors to work in areas without 3 phase electricity supply. It can also work with the electricity from the network by passing the generator. With its precise proportioning capacity, it assures contractors with a very well-proportioned mixture of two components.
The machine is equipped with all necessary technical feature to comfort users during application. Maximum hydrau- lic power capacity of 210 bar - 3045 psi and pre-heater system with total power of 11.200 watt enable users to apply polyurea and spray foam in all seasons.
Genset Integrated Spray Machine’s hose heating system is manufactured to enable use different types of heated hoses. Error control automation allows user to limit pressure tolerance range and check the error history for diagnosing any potential problems. The simple and useful electrical and electronical design of machine makes it easy for user to check everything easily. Specially designed phase control and correction system prevents the costly repairs resulting from misconnection to electricity plugs.
Weight |
1250 kg |
||
Total Power |
25600 watt |
25,6 kw |
|
Sizes |
Yükseklik |
En |
Uzunluk |
219 cm |
103 cm |
154 cm |
|
Type of fuel used |
Dizel |
||
Max. Power |
35 kw |
35 kVA |
- |
Frequency (HZ) |
50 Hz |
|
- |
Fuel Consumption (lt/hour) |
Prime %100 8 lt/hour |
Prime %75 6 lt/hour |
Prime %50 4 lt/hour |
Fuel Tank Capacity |
60 lt |
|
|
Cooler Oil Capacity |
8,5 lt |
|
|
Power Source |
3 Phase |
380 Volts |
|
Air Tank |
100 lt |
|
|
Pressure |
6 - 8 Bars |
|
|
Compressor Type |
Coupled Piston Compressor |
Pistonlu Akuple |
|
Power |
5.5 hp |
4 kw |
|
