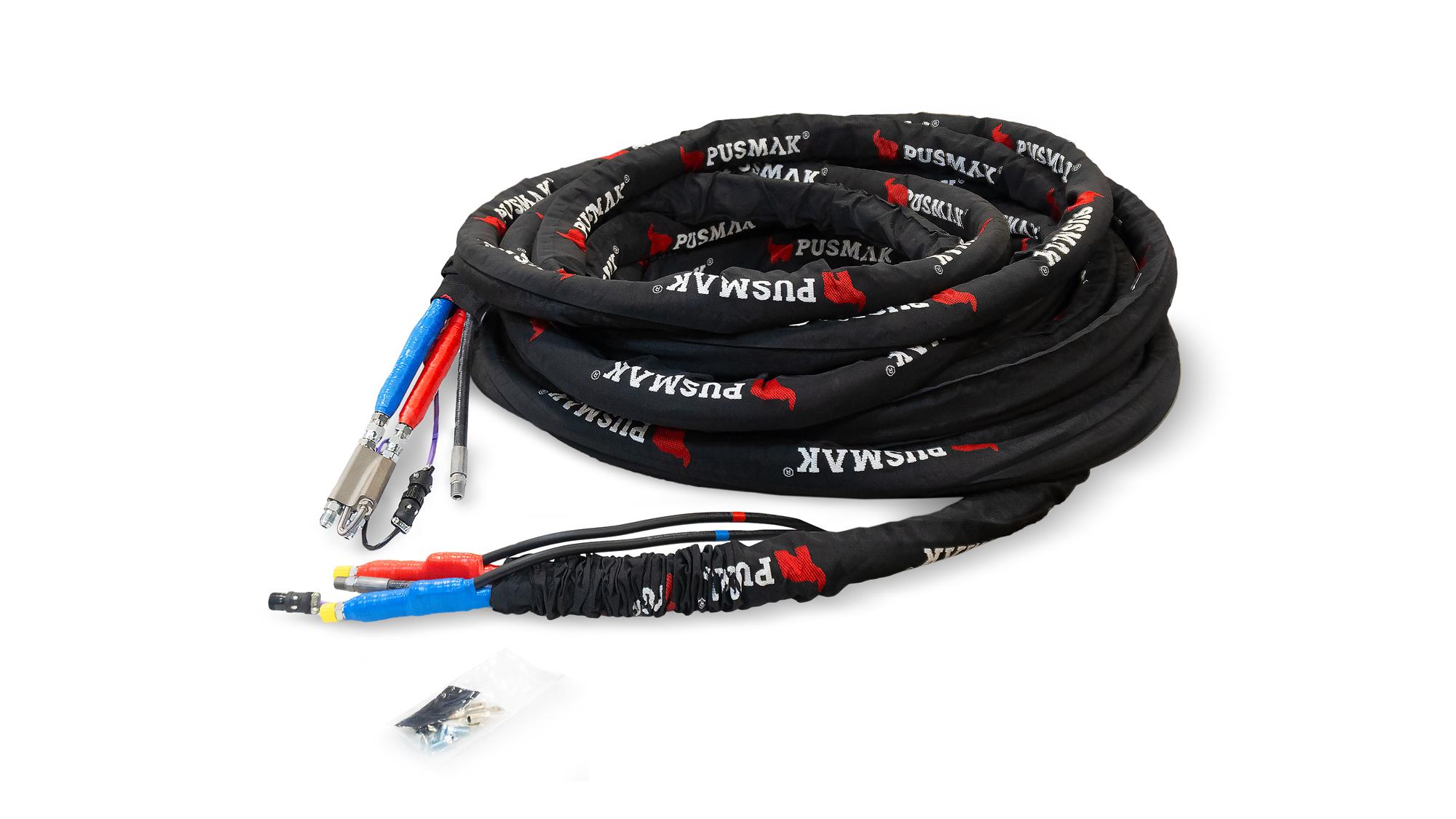

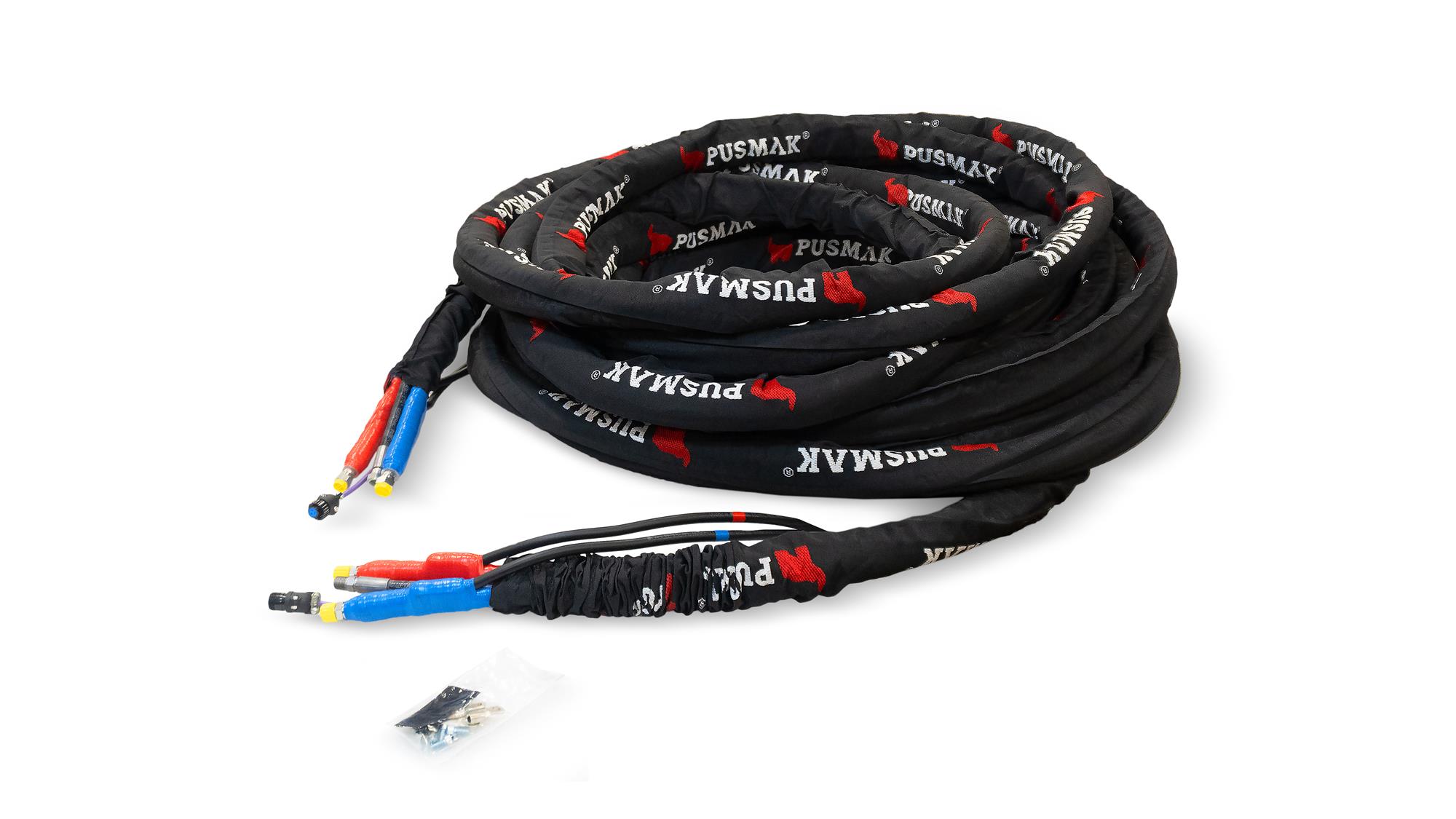

PH30 – Heated Hose

A 30 m heated hose designed for industrial polyurethane and polyurea systems.

Key Features

Length: 100 ft / 30 m
Inner Diameter: 3/8"
Temperature Sensor: E-type thermocouple
Max. Operating Temperature: 90 °C (194 °F)
Max. Operating Pressure: 240 Bar (3500 PSI)
Required Heating Power: 800 W

Technical Specifications

Length: 100 ft / 30 m

Sensor Type: E-type thermocouple

Inner Diameter: 3/8"

Max. Temperature: 90 °C

Max. Pressure: 240 Bar

Heating Power: 800 W

Fittings

Machine End (1st End)

ISO: 1/2 UNF (female)
POL: 9/16 UNF (female)
Air: 1/4 BSP (female)

Sensor End (2nd End)

ISO: 1/2 UNF (male)
POL: 9/16 UNF (male)
Air: 1/4 NPT (male)
