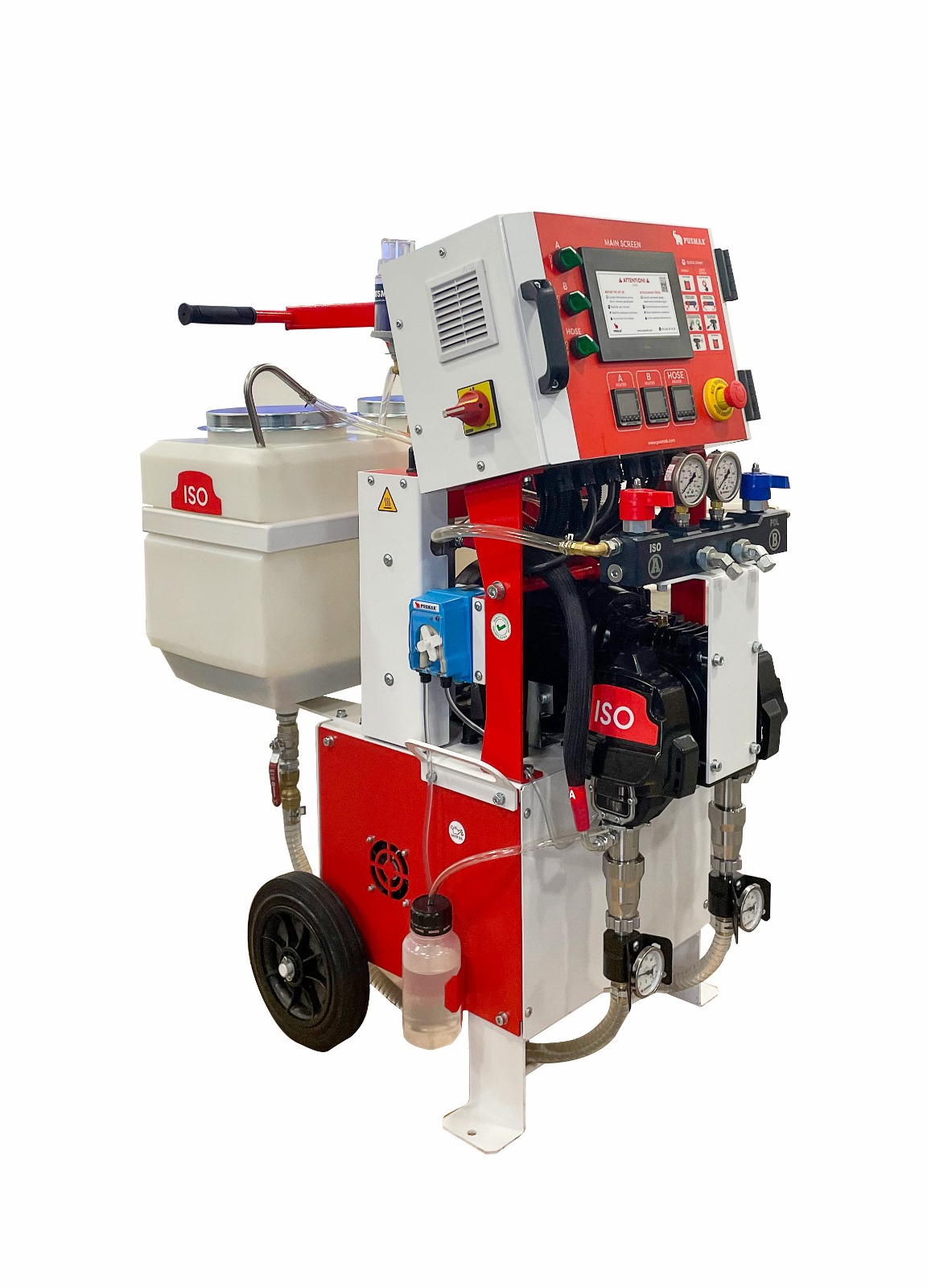

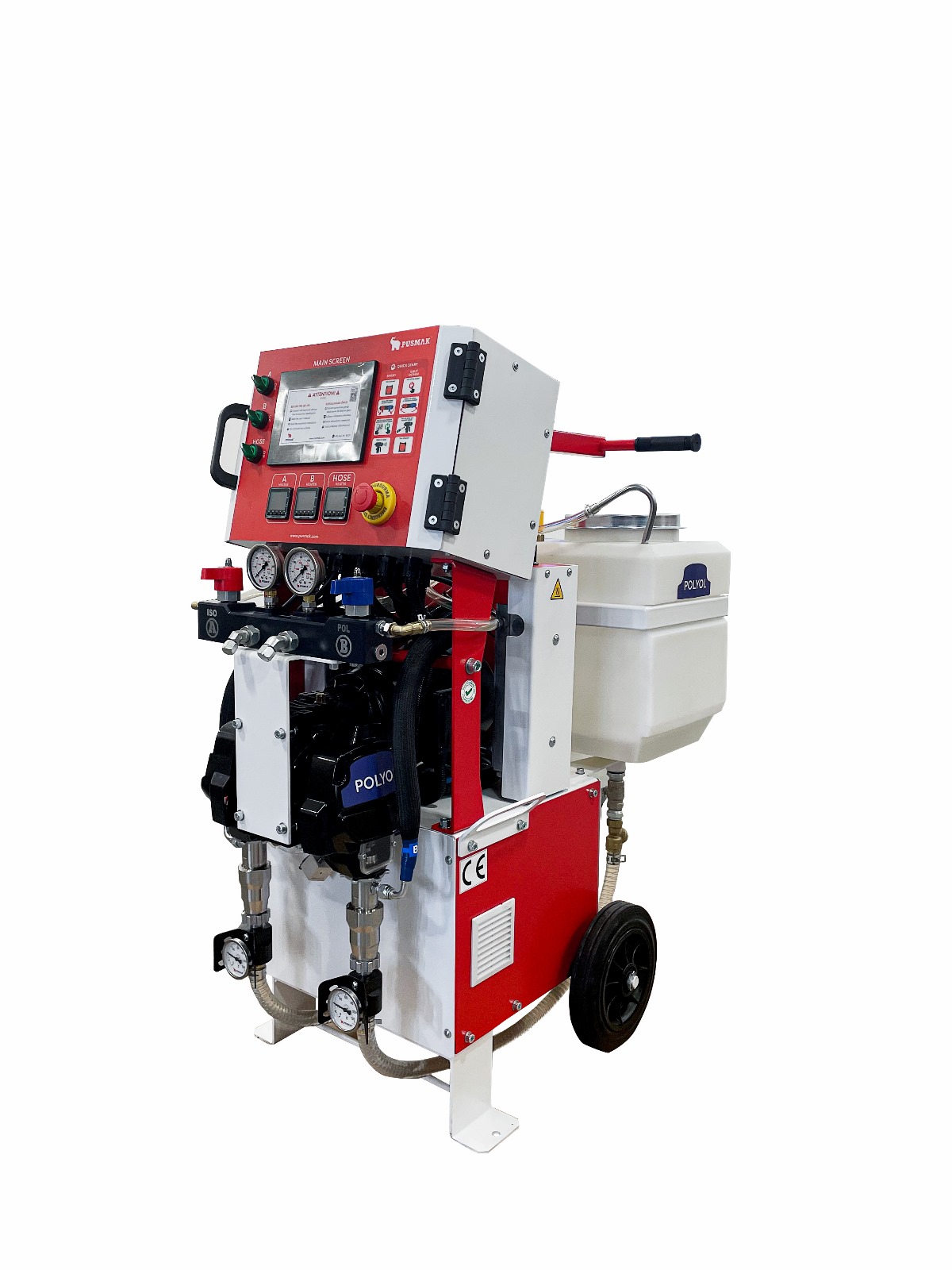

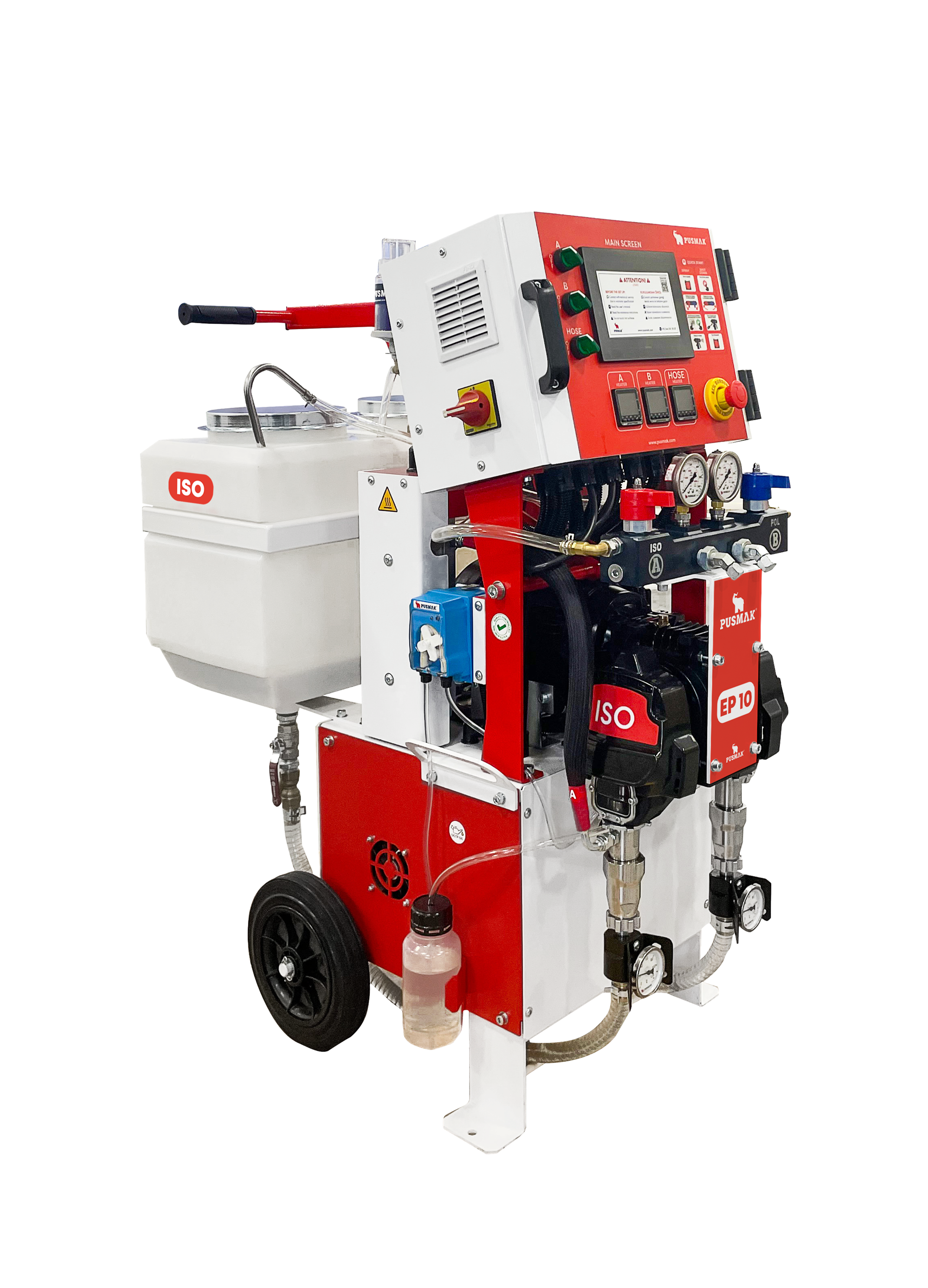

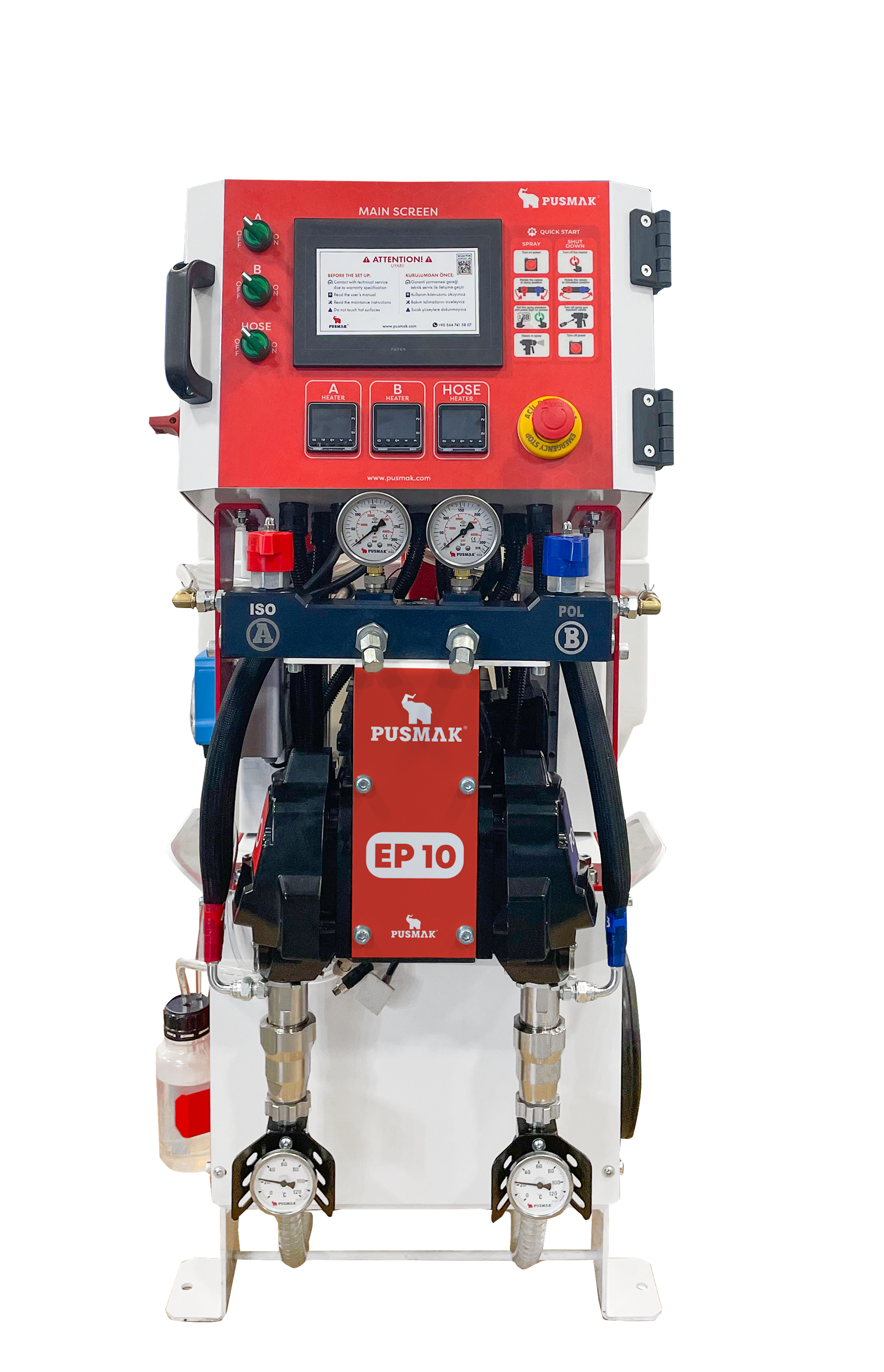

Electiric Series PU Foam Machine

EP-10

Electiric Series Single Phase PU Foam Machine

The Pusmak EP 10 series electric compact polyurethane sprayer is a portable sprayer that allows you to work on
small projects without compromising performance. The EP 10 is designed for two-component spray polyurethane foam applications.
Easy to install and use, the EP 10 provides optimal efficiency for your business continuity without requiring high power thanks to its intelligent
control system. It is highly user-friendly for polyurethane spraying applications.

Ideal for spraying in small and hard-to-reach areas.
It can be operated by a single person.
Preheaters and hose heaters can be used as a
hybrid. (Boost Mode)
Economical electricity consumption. (1-phase 23 A –
220 V)
Easy to use, store, and transport.
No transfer pump required

	Metric	Imperial
Maximum Fluid Pressure	200 bar	2900 psi
Operating Power Voltage	220 V
Amperage	25,9 / 28 A
Performance Per Minute	4,5 kg/dk	9,92 lb/min
Amount of Raw Material / Cycle	12,3 ml	0,42 oz
Maximum Heated Hose Lenght	33 m	49 ft
Pre-Heater Power	2400 W
Hose Heater Power	1,4 kW
Total Power	5,7 - 6,2 kW
Weight	157 kg	346,1 lb
Height	115 cm	45,28 in
Width	65 cm	25,59 in
Lenght	95 cm	37,40 in
